Photon engine case
A case to hold the optical and electrical circuit of the cystoscope.

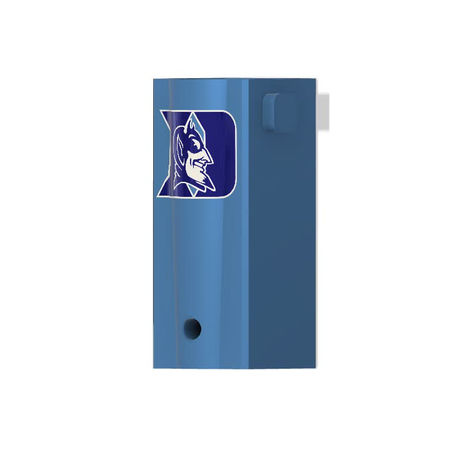

I have modeled a casing to hold the photon engine in a cystoscope. The case has a four-point mounting system in the form of two ears on the side and two circular slots on the top and bottom. The inside is shelled to give plenty of space for the photon mechanism to be placed. The rear provides 3 holes for the input of 3 wires from the 3 pin connector.
I also designed a sheet metal holder for the case that could hold it firm and stable when operations are to be done on the case.
